Truck Rear Reflective Chevron Sticker
Product Overview

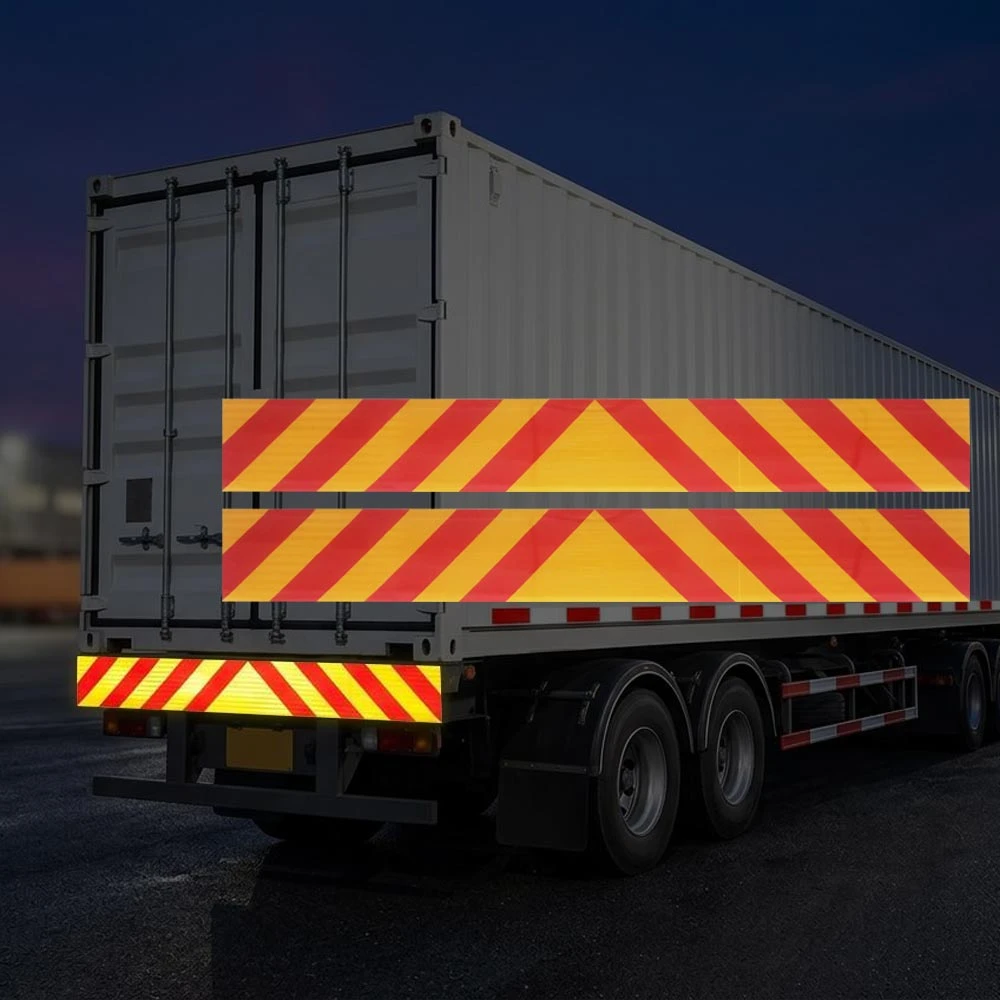

Custom Size High-Visibility Truck & Trailer Rear Reflective Chevron Warning Sticker
Ensure maximum nighttime road safety and vehicle visibility with our premium Micro-Prismatic Reflective Rear Chevron Stickers. Engineered specifically for heavy-duty trucks, trailers, tankers, and commercial fleet bumpers, this high-performance reflective marking provides ultra-bright retroreflection visible from over 500 meters.
Compliant with international safety standards (ECE 70 / ECE 104 / DOT-C2), it offers superior weather resistance, strong industrial-grade adhesion, and 100% customizable dimensions to fit any vehicle chassis or bumper profile.

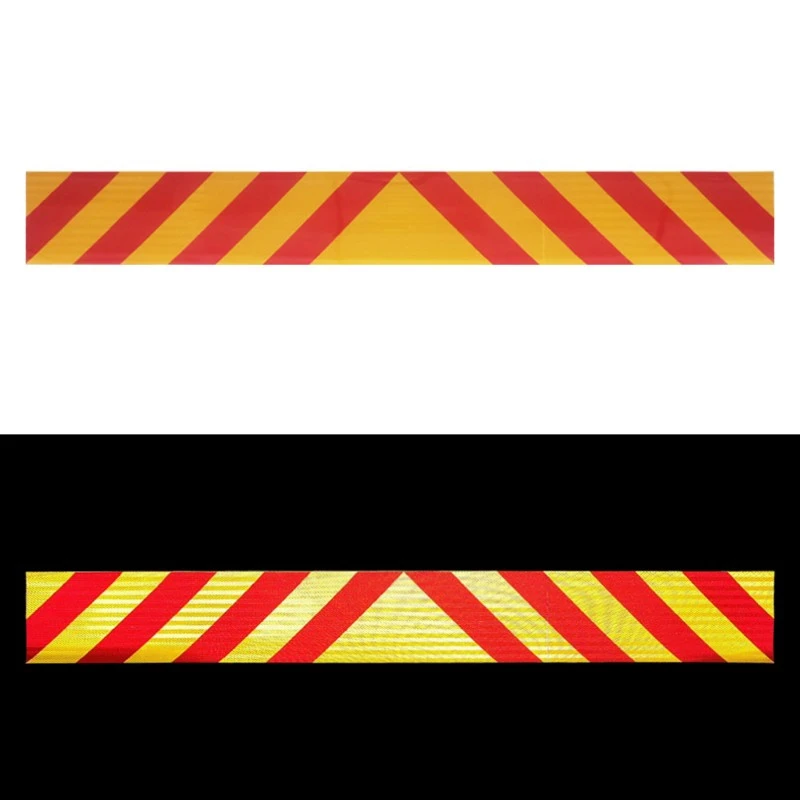

Reflective Warning Chevron Tape
Key Highlights & Selling Points
High-Intensity Micro-Prismatic Technology: Ultra-bright retroreflection with wide-angle reflectivity ensures instant detection at night or under severe weather (fog, rain, snow).
100% Custom Dimensions & Profiles: Available in standard sheet sizes (e.g., 565×200mm, 140×565mm, 1200×300mm) as well as continuous rolls or die-cut customized sizes.
Industrial Weather & Chemical Resistance: UV-resistant top coat prevents fading; IP68 waterproof and resistant to high-pressure washing, diesel, oil, and road salt.
Aggressive Pressure-Sensitive Adhesive: Strong permanent self-adhesive backing adheres firmly to clean metal, aluminum, painted steel, and plastic surfaces without peeling.
Global Safety Compliance: Meets European ECE 70/104 Class 5 standards and US DOT-C2 conspicuity requirements.
Technical Specifications
| Specification Item | Details / Value |
|---|---|
| Product Name | Heavy Duty Truck Rear Reflective Chevron Sticker |
| Reflective Technology | Micro-Prismatic (High-Intensity Retroreflective) |
| Material Composition | PMMA / PET / PC Top Film + Prismatic Layer + Pressure-Sensitive Adhesive + Release Liner |
| Pattern / Design | 45° Chevron Warning Stripe / Inverted V-Shape |
| Color Options | Red & Yellow (Standard) / Red & White / Fluorescent Yellow-Green & Red (Customizable) |
| Standard Dimensions | • 565 mm × 200 mm (1-Piece Sheet) • 140 mm × 565 mm (2-Piece Pair Pack) • 1200 mm × 300 mm (Continuous Sheet) • 100% Customized Sizes (Length × Width) Supported |
| Thickness | 0.40 mm – 0.55 mm (Sticker Only) / 1.0 mm – 2.0 mm (With Aluminum Plate) |
| Reflective Coefficient (CPL) | > 400 – 600 cd/lx/m² (High Retroreflection) |
| Weather Resistance | 3 – 7 Years (Commercial / Engineering / Diamond Grade options) |
| Working Temperature | -40°C to +80°C (-40°F to +176°F) |
| Waterproof Rating | IP68 Rated, Resistant to High-Pressure Washing & Road Chemicals |
| Adhesive Type | Permanent Industrial-Grade Acrylic Adhesive |
| Mounting Options | Flexible Self-Adhesive Film OR Rigid Aluminum Plate with Pre-drilled Holes |
| Compliance & Standards | Designed to meet ECE 70 / ECE 104 Class 5 / DOT-C2 / ISO 7591 |
| Customization (OEM/ODM) | Custom Dimensions, Logo Laser Printing, E-Mark Printing, Custom Packaging |
| Application | Truck Rear Bumpers, Trailers, Semi-trailers, Tankers, Container Chassis |
Full Customization & OEM/ODM Service
We provide comprehensive OEM & ODM solutions for fleet operators, distributors, and vehicle manufacturers:
1. Custom Size & Die-Cutting:
Customized lengths, widths, and curve-fitting pre-cut shapes tailored to specific bumper geometries.
2. Custom Backing & Mounting:
Flexible self-adhesive sticker (direct stick).
Pre-drilled Aluminum / Aluminum Composite Backing board (screw-mounted).
3. Logo & E-Mark Laser Printing:
Custom brand logos, fleet numbers, ECE / DOT marks, or bar codes printed onto the reflective surface.
4. Tailored Packaging:
Retail shrink-wrap with color card, pair-pack cartons, bulk fleet master packs.
Application Guide & Instructions
Step 1 - Surface Preparation: Clean the target surface thoroughly with alcohol or degreaser to remove grease, dirt, and wax. Ensure the surface is completely dry.
Step 2 - Alignment: Position the chevron sticker, ensuring the arrows point upwards/outwards per local traffic regulations.
Step 3 - Application: Peel off the release liner gradually and apply the sticker with a felt squeegee, using firm, even pressure from the center outwards.
Step 4 - Curing: Allow 24–48 hours for the pressure-sensitive adhesive to reach maximum bonding strength before vehicle washing.
FAQ
Q1: Can you produce exact custom sizes according to our trailer bumper blueprints?
A: Yes! Custom sizing is our specialty. Please share your required dimensions (Length × Width) or technical drawings, and our engineering team will provide free digital mockups and precision die-cut samples.
Q2: What is the minimum order quantity (MOQ) for custom sizes or private labeling?
A: Standard sizes have an MOQ as low as 50–100 pairs. For custom dimensions or printed branding, the MOQ is typically 200–500 pairs, depending on the specifications.
Q3: Does the sticker withstand high-pressure water washing and extreme winter weather?
A: Absolutely. Our stickers feature edge-sealed micro-prismatic layers and outdoor acrylic adhesive, rated for -40°C to +80°C and fully resistant to commercial vehicle power washers.
Q4: Can you provide samples for quality and reflectivity testing?
A: Yes, we offer free standard sample swatches (freight collect or via your courier account). Custom-sized prototype samples can be prepared in 3–5 business days.
