Products

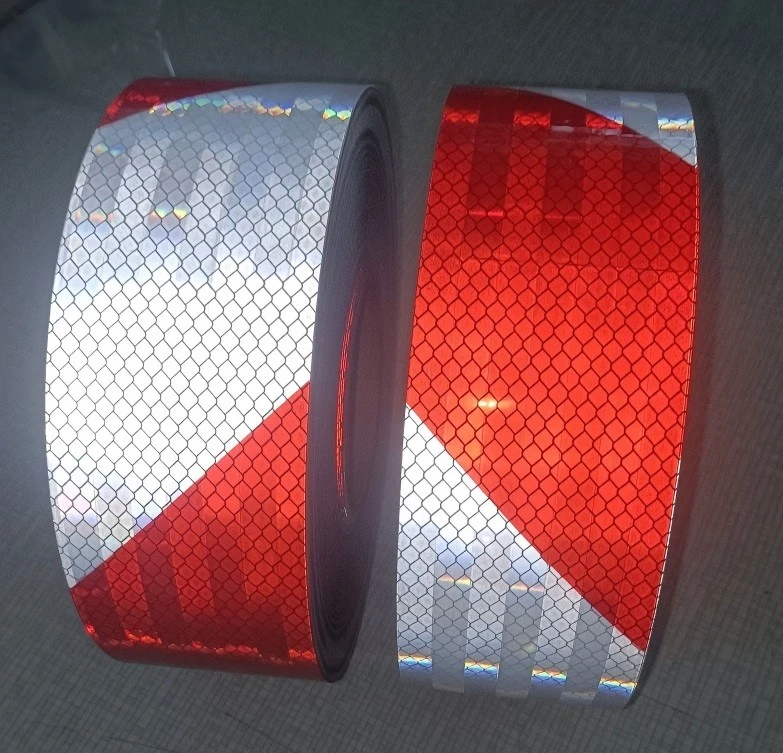

Heavy Duty Vehicle Reflective Conspicuity Tape
Micro Prismatic Reflective Truck Decal
| Specification Item | Details / Value |
|---|---|
| Product Name | Heavy Duty Truck Rear Reflective Chevron Tape |
| Reflective Technology | Micro-Prismatic (High-Intensity Retroreflective) |
| Material Composition | PMMA / PET / PC Top Film + Prismatic Layer + Pressure-Sensitive Adhesive + Release Liner |
| Pattern / Design | 45° Chevron Warning Stripe / Inverted V-Shape |
| Color Options | Red & Yellow (Standard) / Red & White / Fluorescent Yellow-Green & Red (Customizable) |
| Standard Dimensions | • 565 mm × 200 mm (1-Piece Sheet) • 140 mm × 565 mm (2-Piece Pair Pack) • 1200 mm × 300 mm (Continuous Sheet) • 100% Customized Sizes (Length × Width) Supported |
| Thickness | 0.40 mm – 0.55 mm (Sticker Only) / 1.0 mm – 2.0 mm (With Aluminum Plate) |
| Reflective Coefficient (CPL) | > 400 – 600 cd/lx/m² (High Retroreflection) |
| Weather Resistance | 3 – 7 Years (Commercial / Engineering / Diamond Grade options) |
| Working Temperature | -40°C to +80°C (-40°F to +176°F) |
| Waterproof Rating | IP68 Rated, Resistant to High-Pressure Washing & Road Chemicals |
| Adhesive Type | Permanent Industrial-Grade Acrylic Adhesive |
| Mounting Options | Flexible Self-Adhesive Film OR Rigid Aluminum Plate with Pre-drilled Holes |
| Compliance & Standards | Designed to meet ECE 70 / ECE 104 Class 5 / DOT-C2 / ISO 7591 |
| Customization (OEM/ODM) | Custom Dimensions, Logo Laser Printing, E-Mark Printing, Custom Packaging |
| Application | Truck Rear Bumpers, Trailers, Semi-trailers, Tankers, Container Chassis |
Q1: Can you produce exact custom sizes according to our trailer bumper blueprints?
A: Yes! Custom sizing is our specialty. Please share your required dimensions (Length × Width) or technical drawings, and our engineering team will provide free digital mockups and precision die-cut samples.
Q2: What is the minimum order quantity (MOQ) for custom sizes or private labeling?
A: Standard sizes have an MOQ as low as 50–100 pairs. For custom dimensions or printed branding, MOQ is typically 200–500 pairs depending on the specifications.
Q3: Does the sticker withstand high-pressure water washing and extreme winter weather?
A: Absolutely. Our stickers feature edge-sealed micro-prismatic layers and outdoor acrylic adhesive, rated for -40°C to +80°C and fully resistant to commercial vehicle power washers.
Q4: Can you provide samples for quality and reflectivity testing?**
A: Yes, we offer free standard sample swatches (freight collect or via your courier account). Custom-sized prototype samples can be prepared in 3–5 business days.
